Vacuvise work holding fixture from Machines in Motion

Reduce part setup time and refixturing with the
flexible Vacuvise

Vacuum vise or chuck

Eliminate Specialized Fixtures!

     • Holds thin, flat, or irregular shaped
        parts.
     • Flexible foam gasket fits all parts.
     • Works with flood coolant.
     • Runs off shop air (no vacuum
         pump needed).
     • Reduces fixture setup and tear
        down time.
     • Machine whole parts with one
        setup.
     • Ideal for aluminum, copper, plastic,
        ceramics, steel, and graphite.

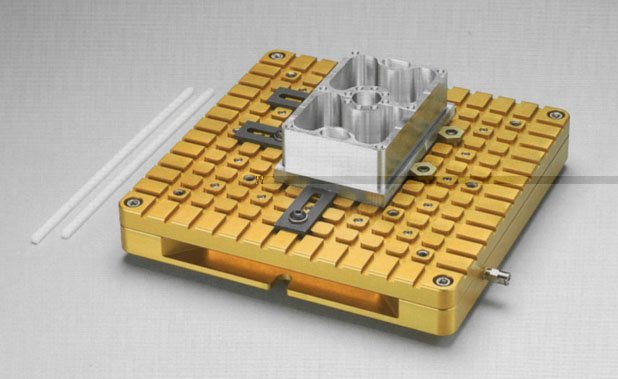

   Table
            The base and top plate of the Vacuvise are constructed of high-grade anodized
            aluminum with stainless steel fastener hardware. Delrin strips are used for part squaring.
            For part-holding, foam gasket material fits into the grid matrix channels to create a
            vacuum seal around the part periphery. Side clamps and Mitee Bites clamps provide an
            additional holding option.

• Keyed for quick set up

• Holds aluminum, plastic, ferrous
and other non-ferrous materials.

• Easily configured to hold thin,
flat, or irregular shaped parts.

• Excellent for machining under
flood coolant conditions.

• Replaceable top matrix
plates available.

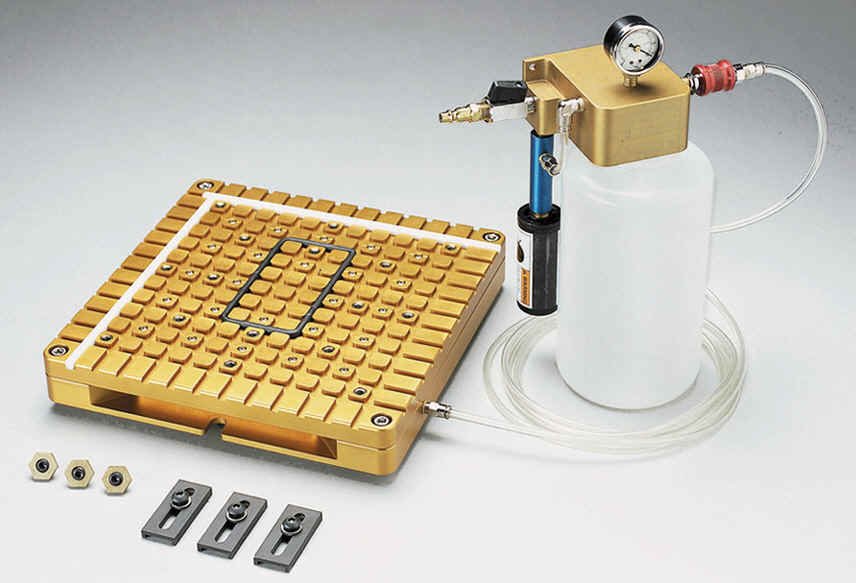

2 table sizes available

#V V1212
The 12" x 12" table comes with the following
hardware:

             2 - 11" low profile plastic guide bars.
             3 - slide clamps.
             3 - Mitee-bite™ clamps.
             2 - Sine-keys to fit a .625" slotted.
                  machine table.
             1 - *" tubing fitting.
             1 - 50' roll of *" closed celled gasket cord.

#V V2416
The 24" x 16" table comes with the following
hardware:

             4 - 11" low profile plastic guide bars.
             6 - slide clamps.
             6 - Mitee-bite™ clamps.
             2 - Sine-keys to fit a .625" slotted.
                  machine table.
             1 - *" tubing fitting.
             1 - 50' roll of *" closed celled gasket cord.

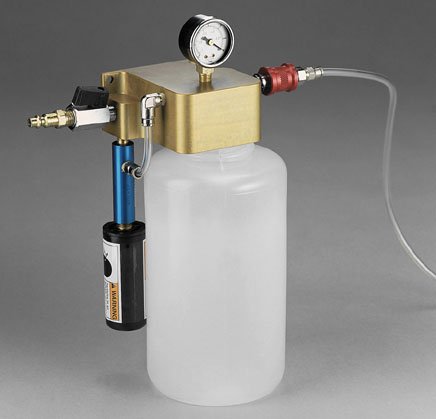

Venturi Vacuum Generator

   • Operates off shop air.
   • No moving parts to deteriorate
   • Easy mounting.
   • 2 liter container for coolant
      overflow capture.
   • Slide valve for quick clamping
        and release.
   • Vacuum gauge included.

Technical Specifications

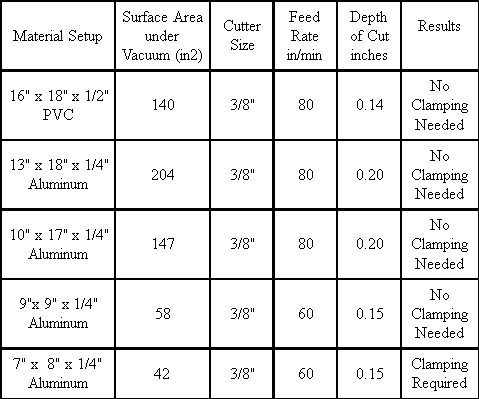

Typical Vacu-Vise™ Fixturing Examples

   • All cuts are made at 60%
        cutter width at 5000 rpm
        with a holding vacuum
        of 27" HG (13PSI).

• Requires at least 85 psi of
shop air.

• Uses 1.2 to 1.8 cfm.

• Electric Vacuum pump
also available.

Machines in Motion's experience in CNC control replacement can benefit your business.
Call us (714) 528-7061

	Put us to work for you
