EXACT JR.

PRODUCTION QUALITY MILLING
FULL FEATURED CONTROL
IN A JUNIOR PACKAGE

714 528-7061
COMPARE !

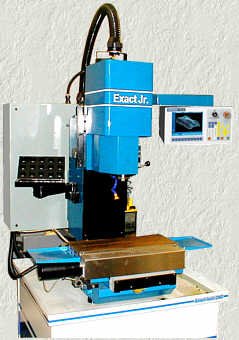

The Exact Jr. production mill possesses the precision of a bed mill, duty cycle of a full sized milling center and ease of use that only a Centroid control can provide.

Standard machine specifications

  • Heavy duty cast iron frame.
  • Fully counter weighted Z axis.
  • Turcite coated ways.
  • Precision ball screws
  • Auto lube system
  • Table size 19.6" X 9"
  • Travels X= 13"  Y= 8"  Z=10"
  • Maximum speeds - Rapid 400"   Feed 200"
  • Positioning accuracy 0.0002"
  • Positioning repeatability 0.0001"
  • Weight 1,700 lbs.
  • Footprint  36" wide - 40" deep
  • Voltage  220VAC 3 phase
  • Single phase optional

    •





    Standard spindle specifications

  • 6,000 R.P.M. cartridge style spindle.
  • 2 H.P. high torque variable speed motor.
  • 30 Taper.
  • Power draw bar unit is standard.
  • Optional 20,000 - 30,000 - 40,000 R.P.M. available.
  • 3 axis high speed contouring.
    • See options list additional features.
    The Exact Jr.
    is built in America    		 Centroid CNC controls
    are built in America
    Available options
    Twin spindles  -  -  -  -  -  -  -  -  -  - Add a high speed spindle from 20,000 to 60,000 RPM.
    Work bench with flood coolant   - Steel bench includes coolant tank and pump with convenient chip tray.
    Full enclosure  -  -  -  -  -  -  -  -  -  - Steel bench with full machine enclosure helps keep the shop clean.
    Dust collection system   -  -  -  -  - Steel bench with full machine enclosure a must for cutting carbon.
    Spray mist coolant system   -  -  - When flood coolant is too much this will keep the tools cool.
    Work lamp   -  -  -  -  -  -  -  -  -  -  - High output quartz lamp with chip protection lens.
    Tooling packages -  -  -  -  -  -  -  - Standard package of tool holders or name your own tooling preference.
    Single phase 220VAC  -  -  -  -  - Electronic frequency inverter works silently without drawing added power.
    Put us to work for you
