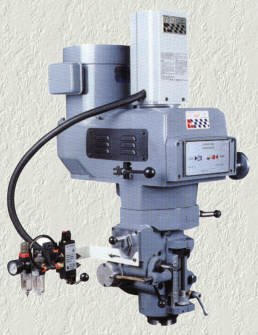

model 200 V Designed to meet the holding requirements of #30 and #40 taper spindles. Mounts easily with just 5 bolts (provided for you in the kit). Includes metal cover to reduce noise and protect your investment. Works on Manual and CNC mills with Variable speed pulleys. See drawbar requirements below. |
|
|

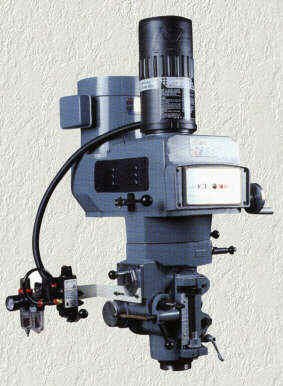

Model 158 V Designed to be used on mills with variable speed pulleys and R-8 or #30 taper spindles. All models come with all of the parts needed for a quick and easy installation. This will work with #40 taper also but we recommend the model 200 V. |
|
|

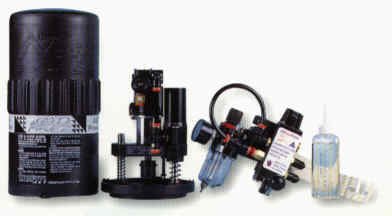

Make your life in the shop much more comfortable while reducing the overall time required to complete your parts. Only 90 P.S.I. of shop air is required. Every model is built with a hardened and ground double hammer mechanism to ensure longer life and better anchoring of the tool holder. Models 158 V and S both come standard with 19 & 21mm size hex sockets. The model 200 has a complete socket set from 16mm to 26mm. The power unit is engaged with the draw bar only during the tool change process. 12 month warranty. |

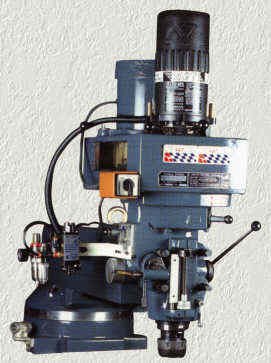

Model 158 S This kit has the features needed to mount correctly onto mill heads using the step pulley spindle drive system. At these prices your power draw bar will quickly provide you with additional income from increased productivity. Your shop employees will like it so much they will believe that you were thinking of them. |
|
