PRAZI II CNC MILL







German quality machine features
Mill Size Large table Small table
TravelX 18.75"   9.75"
           Y   5.5"   5.5"
           Z 11.0" 11.0"
Spindle to Table 3.5" - 14.5" 3.5" - 14.5"
Work area 7.1" x 27.5" 7.1" x 17.7"
T - Slots 3ea. .375" 3ea. .375"
Width
Depth
Height		 37.5"
24.0"
37.5"		 28.0"
24.0"
37.5"
Spindle Head #7500 #3000
Motor 2 H.P.
Constant torque		 1 H.P.
Constant torque
Speed Control Inverter
cw/ccw		 Inverter
cw only
Cooling Fan Fins
Speed Range 180 - 7500 180 - 3000
Collet Size ER - 25 ER - 25
Collet Capacity .625" dia. .625" dia.
Tool Center to Column 7.28" 7.28"
Power 220VAC 110VAC

Common to all models
Accuracy 0.001"
Feed Rate 0.001 - 125 I.P.M.
Rapid Rate 150 I.P.M.
Smallest Move .0001"
Axis Motors Brushless Servo
  • Solid cast iron construction
  • Heavy duty square column design
  • Adjustable dovetail guideways on all 3 axis
  • Precision ground ball screws
  • Powerful and smooth spindle head
  • infinitely variable spindle speeds
  • MT2 Spindle taper with drawbar system
    		•
  • Central lubrication on ways and screws
  • ER25 collet holder included
  • Safety overload and E-stop switches
  • Famous CNC control built in U.S.A.
  • Complete G-code programming manual
  • Control use training video
  • 12 month warranty
    		•
    4 models to choose from

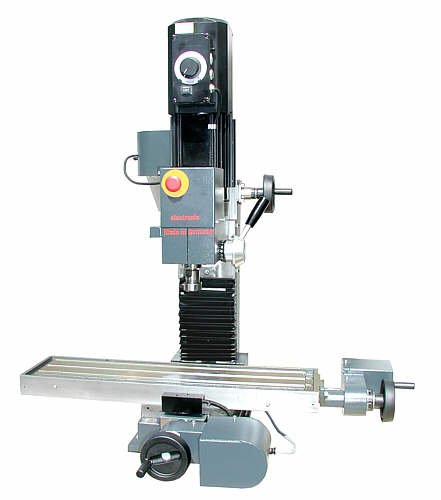

    7500L 2 H.P. 7500 R.P.M. spindle with the larger size table. $17,110.00 3000L 1 H.P. 3000 R.P.M. spindle with the larger size table. $15,915.00
    7500S 2 H.P. 7500 R.P.M. spindle with the smaller size table. $16,380.00 3000S 1 H.P. 3000 R.P.M. spindle with the smaller size table. $15,180.00
    Centroid controls provide powerful CNC features.
    Control details and a listing of optional features are available on the next page .
